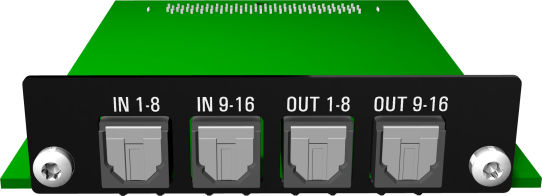

16x16 channel ADAT I/O, up to 96kHz, 2*Toslink in, 2*Toslink out, supports also SPDIF

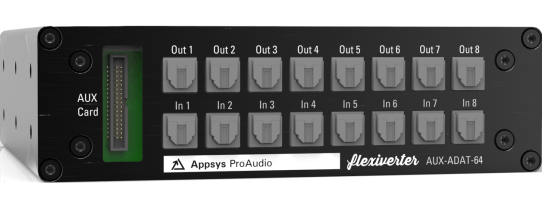

64x64 channel ADAT I/O, up to 96kHz, 8*Toslink in, 8*Toslink out on external breakout box (same format as FLX)

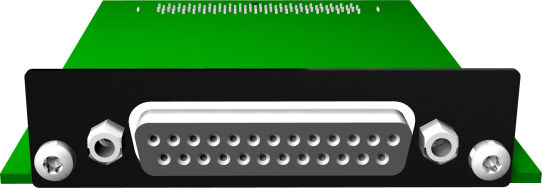

8x8 channel (4 AES/EBU lines) I/O, up to 192kHz, fully isolated, 1*DB25 connector

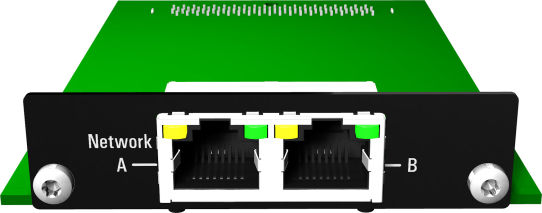

64x64 channel Dante I/O, 2*RJ45connector

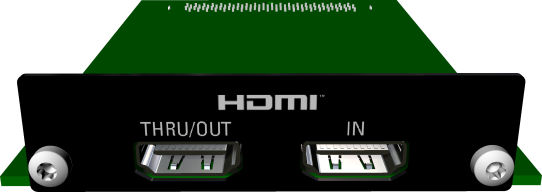

16x16 audio channel extract and/or embed, video passthru

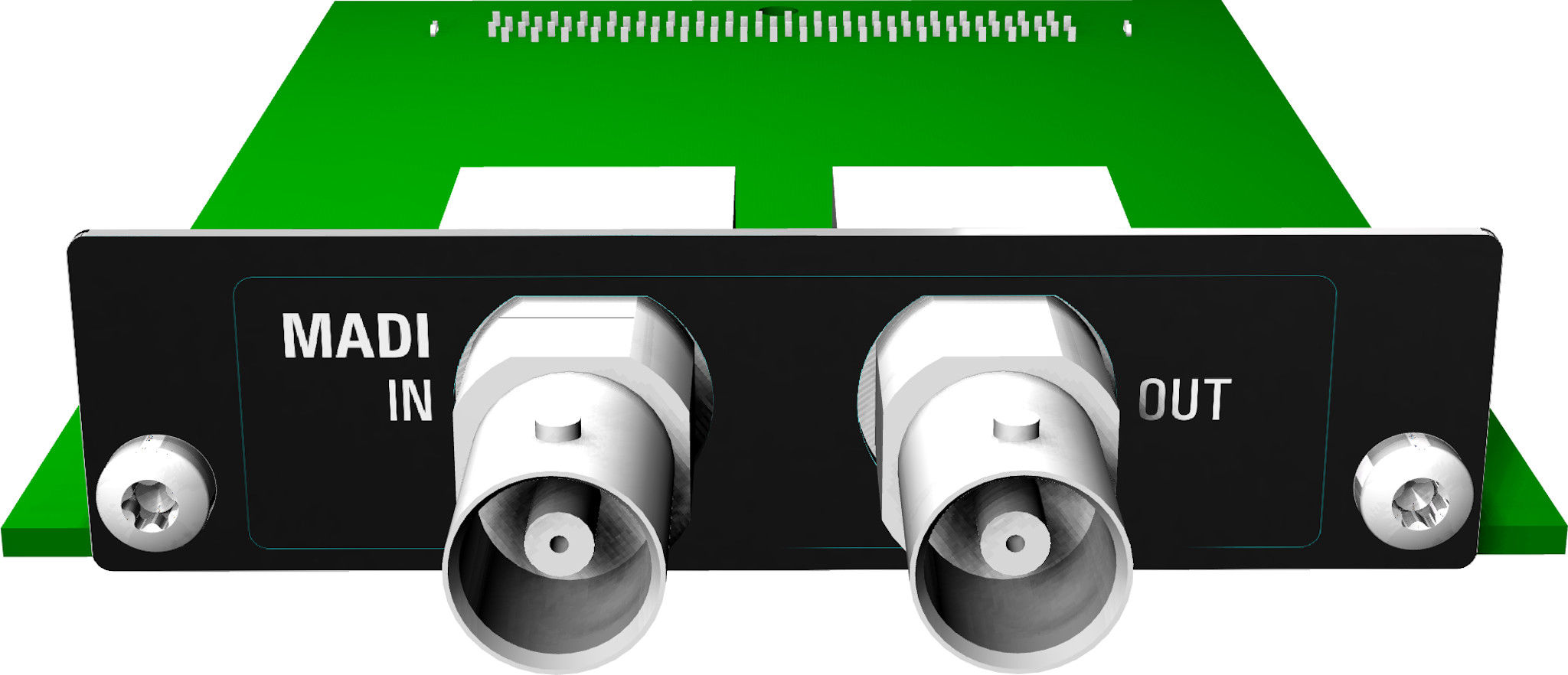

64x64 channel MADI I/O, 2*BNC connector

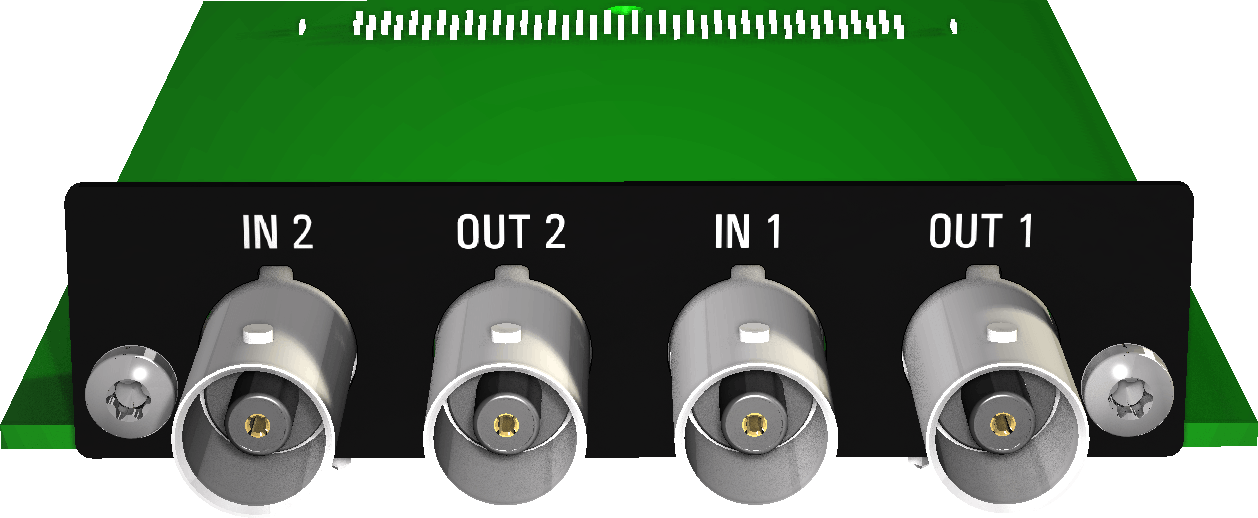

64x64ch@96k MADI I/O (2 input lines, 2 output lines), 4*BNC connectors
<FLX-DANTE/SRC専用>
64x64 channel MADI I/O, Multimode, 125um/1310nm Duplex-LC

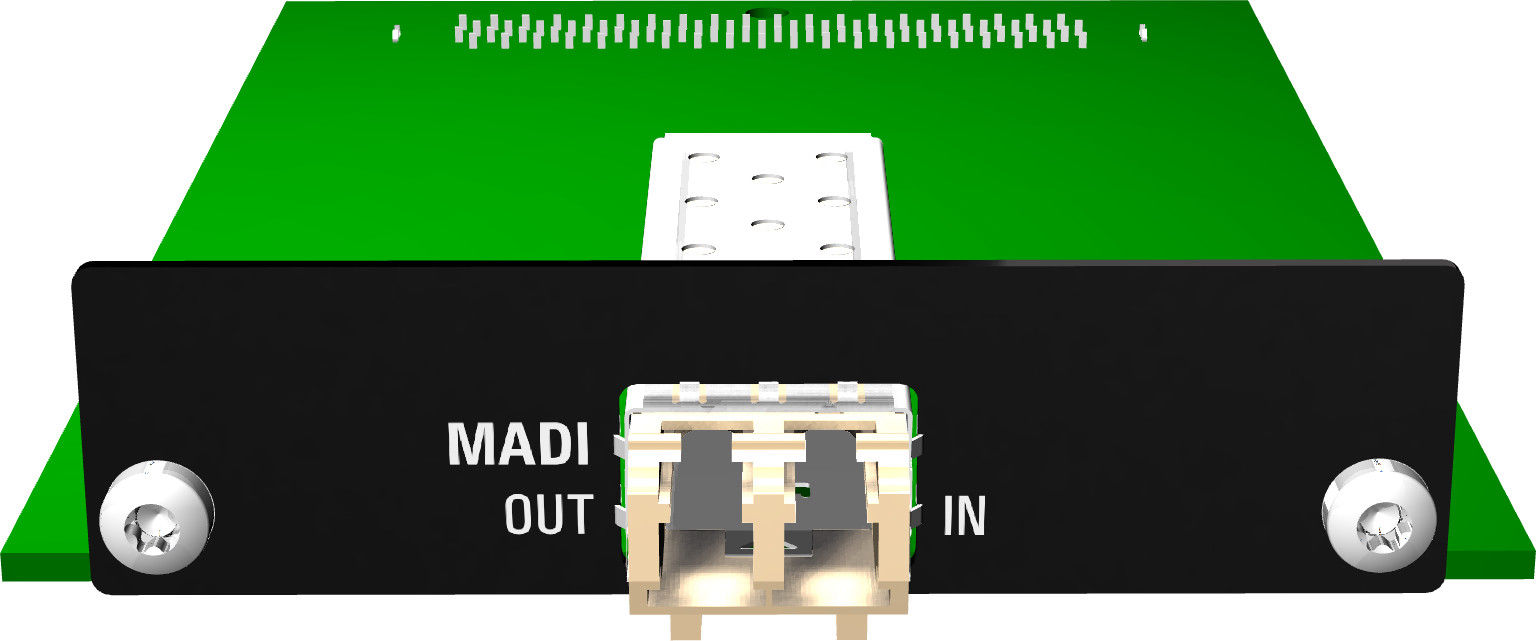

64x64 channel MADI I/O, ships with Multimode 125um/1310nm Duplex-LC module. Can be swapped with Singlemode SFP, or any other module. No SFP vendor lock (Appsys policy)

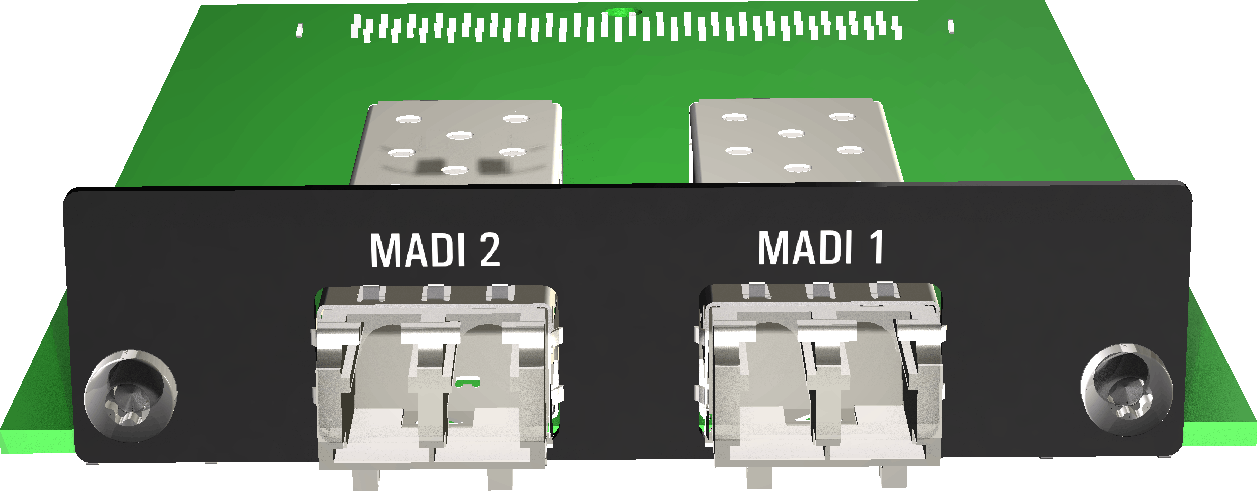

64x64ch@96k MADI (2 input/2 output lines), ships with 2* Multimode 125um/1310nm Duplex-LC module.
<FLX-DANTE/SRC専用>

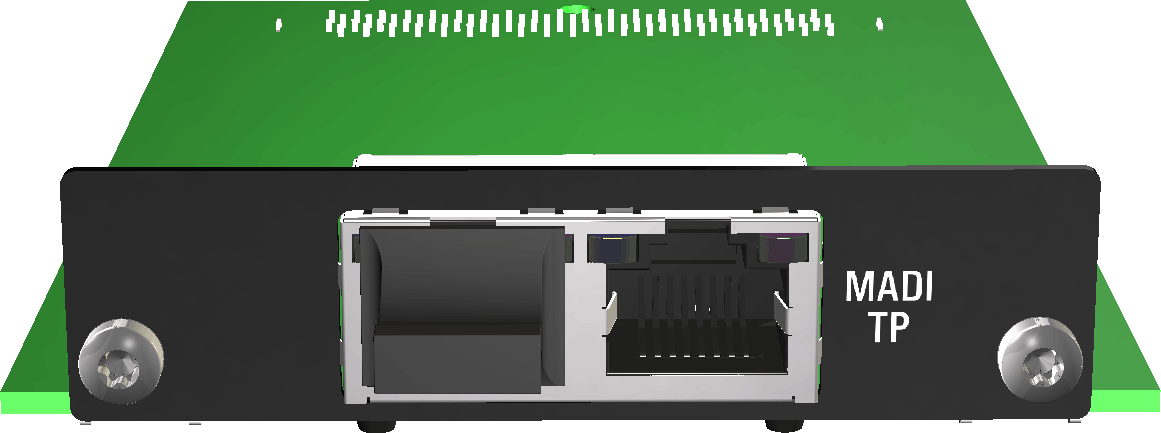

64x64 channel Twisted-Pair MADI I/O, works with DiGiCo/Soundcraft/Studer Cat5-MADI

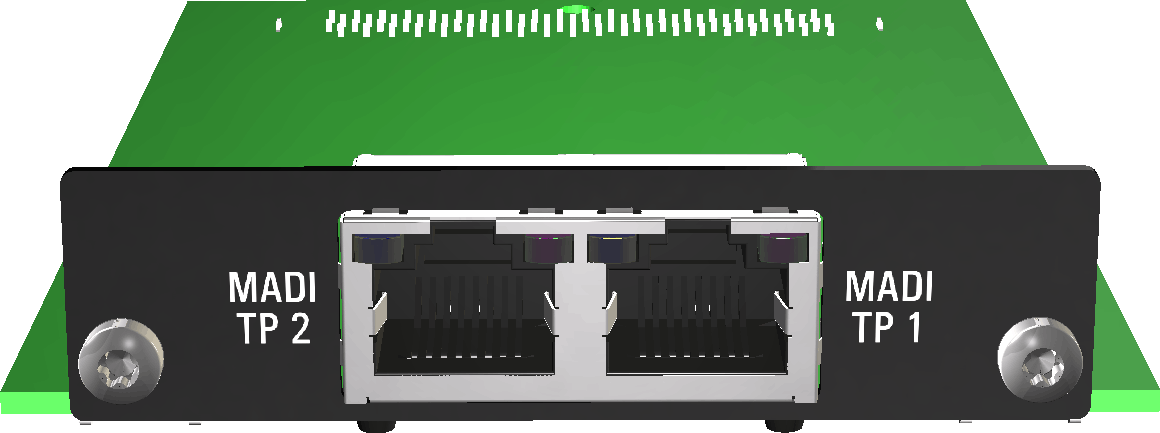

64x64ch@96k Twisted-Pair MADI I/O (2 Cat5 lines), works with DiGiCo/Soundcraft/Studer Cat5-MADI
<FLX-DANTE/SRC専用>

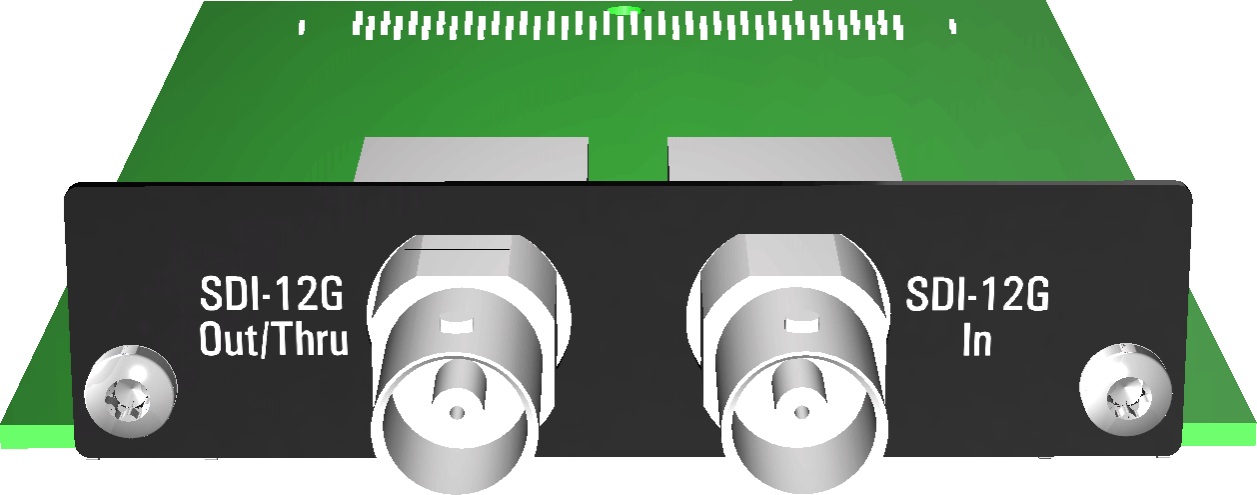

16x16 channel SDI audio extract and/or embed, 12G video passthru

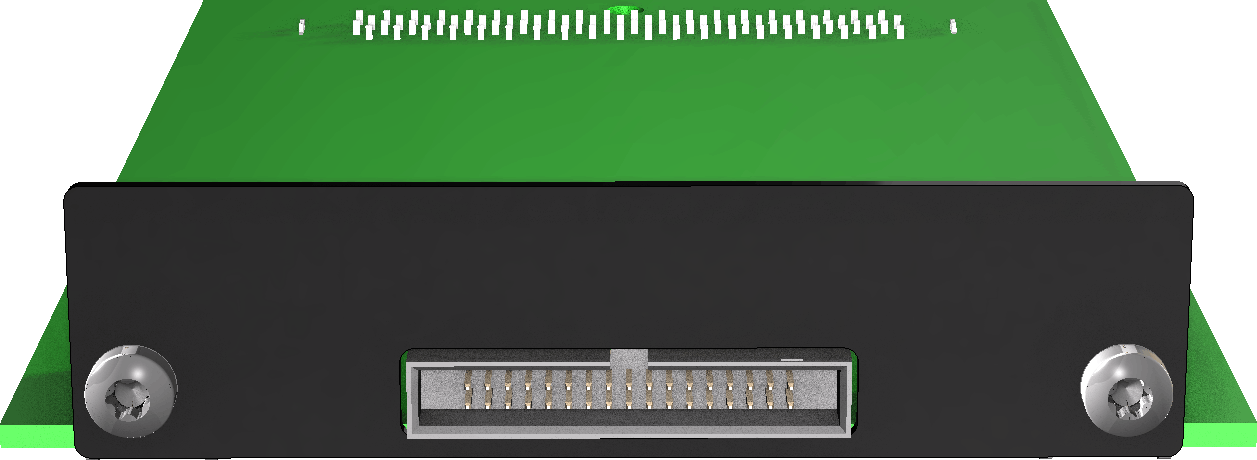

32x32 channel TDM (Time Division Multiplexing/I2S), 3.3V LVCMOS I/O, ribbon cable connector

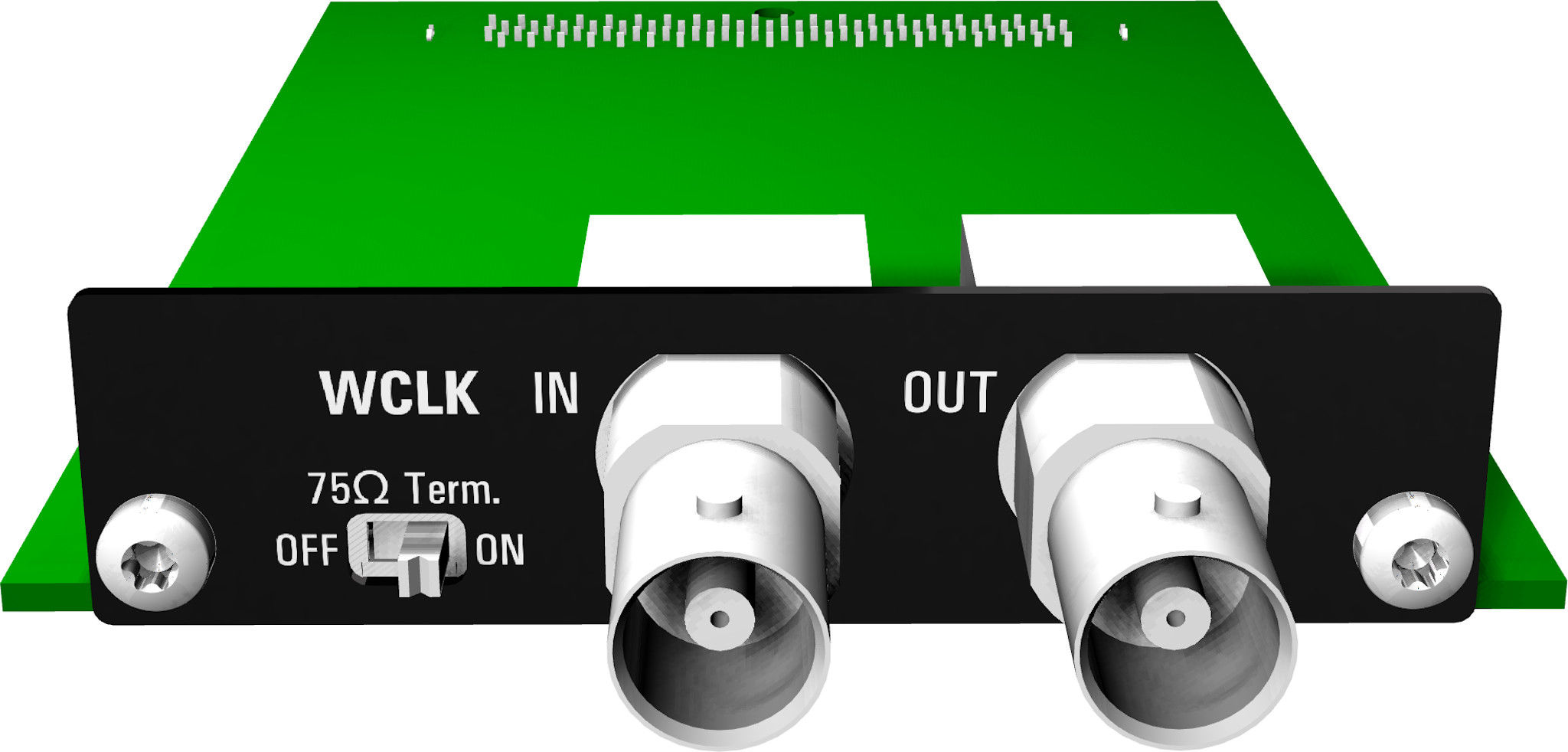

BNC wordclock I/O, 2*BNC connector
